Precision Metal Foil Network Resistor

Precision resistors are vital components in many electronic devices. They are responsible for accurate voltage and current measurements, and in many cases, the failure of even a single resistor can result in complete system failure. To ensure the highest levels of precision and reliability, metallic foil mesh resistors have emerged as the preferred choice for many designers.

Metallic foil mesh resistors are made by precision bonding a thin layer of metallic foil to a substrate material. The metallic foil is usually made from nickel or nickel-chromium alloys, and the substrate material is typically made from a high-temperature ceramic. The metallic foil layer is then etched to create a network of extremely precise resistive elements, which allow designers to create highly accurate and stable resistors.

One of the key advantages of metallic foil mesh resistors is their ability to provide high levels of precision. They typically have a nominal resistance value that is accurate to within 0.01%, ensuring the highest levels of accuracy in electronic systems. Moreover, they are highly stable over time and under varying operating conditions, making them ideal for use in critical applications such as aerospace and defense.

In addition to their high precision and stability, metallic foil mesh resistors also offer excellent thermal performance. They have low thermal coefficients of resistance, meaning that their resistance values remain relatively constant over a wide range of temperatures. This makes them ideal for use in high-temperature environments, such as power electronics or automotive systems.

Overall, metallic foil mesh resistors are an essential component in many electronic systems where precision is critical. They offer high levels of accuracy, stability, and thermal performance, making them the preferred choice for many designers.

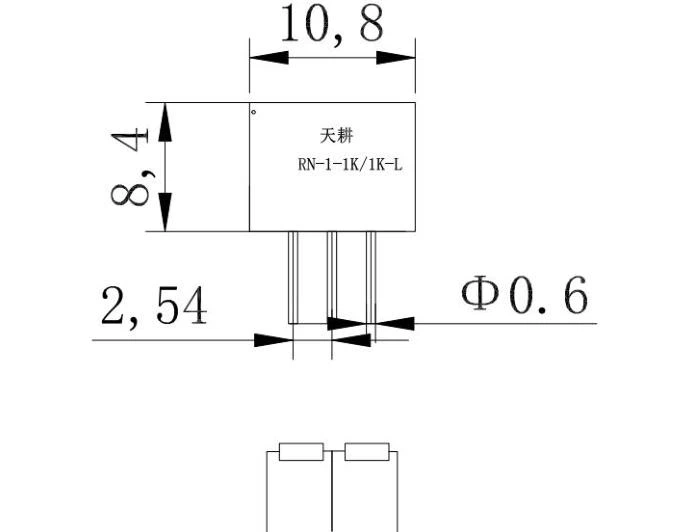

Foil resistance dividator The foil resistance divider, is on a resistance chip while simultaneously lithoout two or Several different resistances. Realize the high resistance tracking stability, while maintaining the metal foil resistance So the excellent characteristics. Metal foil resistance network is widely used in military, aviation, aerospace, automatic testing equipment, Medical, differential amplifier, digital voltmeter gain defined resistance, fire control system, combustion Oil metering systems, A-D, D-A conversion, ratio and ratio matching networks, resistance summing networks, etc. The single resistance power of the network is 0.5W, and the highest tracking temperature coefficient is 0.5 PPM. Precision is followed The highest trace was 0.005%.

Note: For products with different resistance values, the pressure divider can enlarge the product volume and temperature system Number is tracked to within 1ppm

High pressure metal foil pressure divider, according to the resistance value and voltage level, to evaluate the design!

Support Customization
